1. Model: LGW

2. Entrance caliber: 25:1?~80:3?

3. Specific gravity: VK:1.1,VP: 1.4 4. Horsepower: 1/6HP-20HP

5. Frequency: 5:50Hz, 6:60Hz

6. O-ring material: V-VITON,N-NBR,E-EPDM

7. Pump body material: P-PVDF,F-FRPP

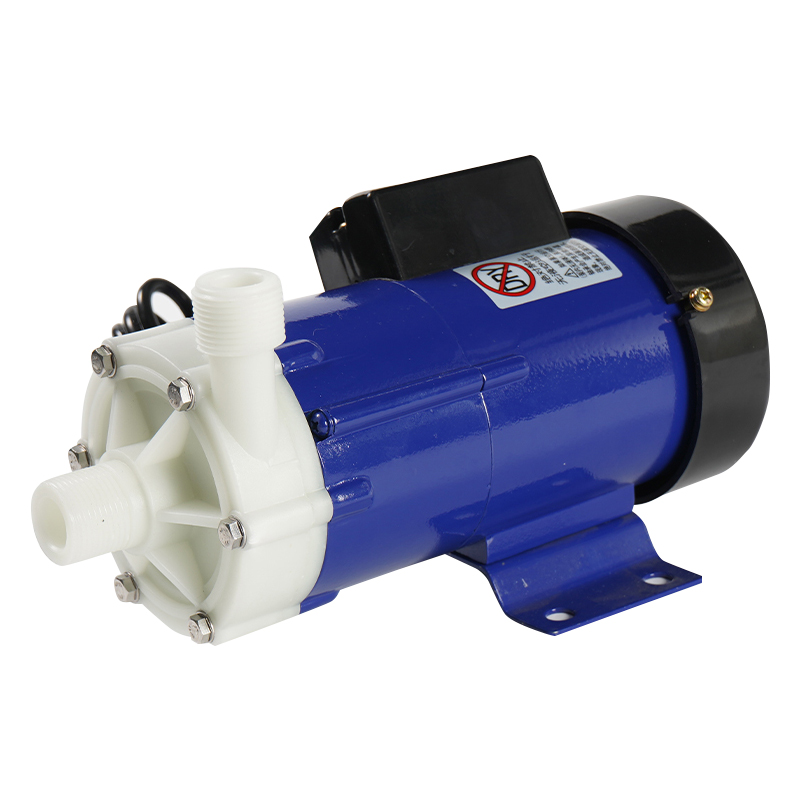

Product Features

The pump adopts a C-shaped clamp spring and an inlet filter screen, with a small inlet body volume, which is more suitable for installation and use in the tank.

Install acid and alkali resistant seals at the motor transmission shaft and pump bottom respectively, with double-layer protection to prevent chemical gas damage to the motor bearings.

Specially designed impeller, even if the impeller occasionally reverses, will not damage the pump.

The pump outlet has two types of connectors, PP and PVDF, for customers to choose from.

The pump is suitable for temperatures below 70 ℃.

Suitable for various acid-base liquid circulation, cooling, spray cleaning equipment, waste gas towers, continuous electroplating, and some special occasions.
